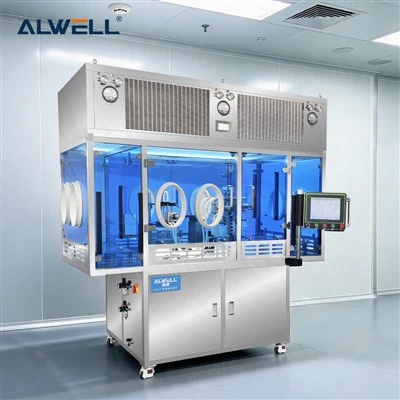

Hauv kev lag luam tshuaj thiab biopharmaceutical manufacturing saw, lubprefilled syringe lub tshuab nqus tsev filling tshuabua lub luag haujlwm tseem ceeb hauv kev muab cov tshuaj ua kua rau hauv cov koob txhaj tshuaj kom raug thiab ruaj ntseg nrog cov roj hmab stoppers. Los ntawm kev sib koom ua ke lub tshuab nqus tsev, cov cuab yeej tshwj xeeb no ua ke siv tshuaj thiab nres rau hauv cov txheej txheem sib koom ua ke - txo qis kev sib cuag huab cua thiab ua kom cov kab khiav haujlwm zoo.
Txawm li cas los xij, lub tshuab nqus tsev filling tsis yog ib qho kev sib cais, nyob ib leeg. Yuav kom ua tiav cov txheej txheem aseptic txhim khu kev qha, nws yuav tsum ua haujlwm hauv kev sib koom ua ke nruj nrog kev tswj hwm chav huv.
1. Kev ua haujlwm ntawm lub tshuab nqus tsev filling thiab Environmental Dependencies

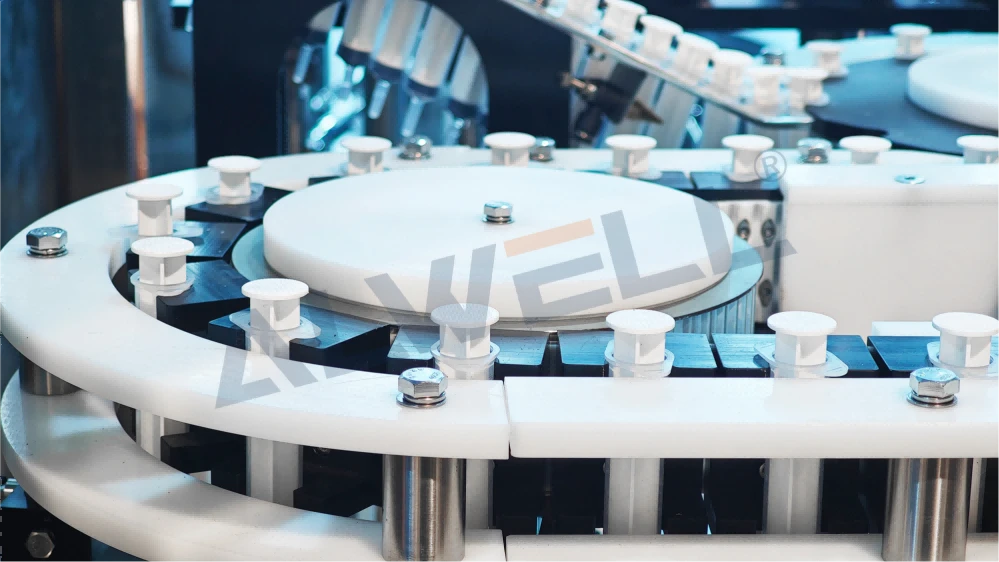

Thaum lub sij hawm prefilled syringe ua, sterile chim nkag mus rau hauv lub filling cheeb tsam tom qab ntxuav thiab depyrogenation. High-precision ceramic lossis peristaltic twj xa cov khoom ua kua rau hauv cov thoob. Cov syringes puv ces txav mus rau hauv lub tshuab nqus tsev chamber rau stopper insertion.
Nyob rau hauv lub kaw chamber, lub kaw lus rub lub tshuab nqus tsev kom tshem tawm cov huab cua saum cov kua kem ua ntej nias lub stopper rau hauv qhov chaw. Qhov no ib txhij degassing thiab sealing mechanism tshem tawm huab cua bounce, sau- theem hloov pauv, thiab lub taub hau npuas - qhov tseem ceeb rau cov pa oxygen- rhiab heev biologics, tshuaj tiv thaiv, thiab cov qauv tsim.
Vim tias qhov qhib lub koob txhaj tshuaj tseem raug nthuav tawm ua ntej nres, kev huv ib puag ncig ncaj qha cuam tshuam qhov kev pheej hmoo kis kab mob. Qhov tseem ceeb filling point feem ntau ua haujlwm raws li ISO 5 (Qib A) unidirectional laminar airflow hood. Vertical laminar cua cheb tawm cov pa tawm thiab cov kab mob ntawm qhov nrawm ntawm 0.45 ± 0.1 m / s, tuav lub hnab ntawv tsis muaj menyuam ntawm qhov chaw sau. Yog tias tsis muaj kev ua raws li chav huv huv tom qab, txawm tias qhov siab - lub tshuab nqus tsev ua haujlwm tsis tuaj yeem tiv thaiv cov kab mob los yog cov kab mob microbial los ntawm huab cua puag ncig.
2. Technical Cleanroom Requirements rau Aseptic Filling Lines
Lub tshuab nqus tsev filling tso siab rau cov kev ntsuas tshwj xeeb hauv chav huv, suav nrog kev faib ua kom huv, qhov sib txawv siab gradients, thiab cov qauv airflow:
- Huab cua huv Standards: Qib A core cheeb tsam tswj nruj dynamic txwv (Less tshaj los yog sib npaug rau 3,520 particles/m³ rau ntau tshaj los yog sib npaug rau 0.5 µm hais; <1 CFU/m³ rau pa microbes). Qhov chaw nyob ib puag ncig Qib B tom qab tswj kev txwv tsis pub muaj tsawg dua lossis sib npaug li 352,000 particles / m³ rau ntau dua lossis sib npaug rau 0.5 µm cov khoom.
- Differential Pressure Gradints: Qhov zoo siab gradients (tsawg kawg 10 Pa txheeb ze rau txoj kev hauv tsev thiab 5 Pa ntawm cov chav huv huv uas nyob ib sab) tiv thaiv huab cua qias neeg rov qab mus rau qhov chaw ua haujlwm tseem ceeb. Keeb kwm Qib B cov cheeb tsam feem ntau xav tau ntau dua lossis sib npaug ntawm 60 huab cua hloov pauv ib teev (ACPH) kom tsis tu ncua dilute particulates.
- Environmental Monitoring (EM): Nruam online particle counters taug qab 0.5 µm thiab 5.0 µm particle concentrations, txhawb nqa los ntawm cov huab cua ua haujlwm, kho cov phiaj, thiab lub tswb sib txawv.
3. Kev rho tawm thiab kev siv tshuab tsis siv neeg: Ua kom lub tshuab ua kom zoo dua -Kev cuam tshuam ib puag ncig
Txhawm rau txo qis tib neeg- kis tau los ntawm cov kab mob sib kis- qhov tseem ceeb ntawm kev nyab xeeb hauv chav huv - cov kab niaj hnub sau suav nrog Isolators lossis Restricted Access Barrier Systems (RABS):
- Isolators: Lub cev tiv thaiv tag nrho cais cov neeg ua haujlwm ntawm thaj chaw ua haujlwm. Ua ke nrog Vaporized Hydrogen Peroxide (VHP) decontamination cycles, isolators ua tiav 6-log bioburden txo. Thaum nyob hauv ib qho kev sib cais, qhov chaw nyob ib puag ncig ntawm chav huv huv feem ntau tuaj yeem raug txo mus rau Qib D.
- RABS: Txhim kho qib A dynamic ib puag ncig nyob rau hauv qib B keeb kwm yav dhau, siv hnab looj tes chaw nres nkoj thiab chaw nres nkoj nrawm (RTP) rau kev tswj xyuas.
Tsis tas li ntawd, robotic automation-xws li ultra- huv si robotic caj npab rau lub thawv tuav - tshem tawm kev sib cuag los ntawm tub tuav mus rau qhov kawg nres. Cov khoom tsim kuj tseem qhia txog kev sib haum xeeb ntawm chav huv: phab ntsa ntub dej-mounting txuag chaw hauv pem teb, 316L stainless hlau qhov chaw tiv taus cov tshuaj tua kab mob hnyav, thiab txo cov neeg kho tshuab crevices tiv thaiv cov khoom seem.
4. Kev ua haujlwm ruaj khov thiab txhim khu kev qha
Kev sib cuam tshuam ntawm lub tshuab nqus tsev filling thiab nws qhov chaw huv huv yuav tsum muaj kev siv tau zoo. Tom qab kev teeb tsa, Kev Txhim Kho Kev Tsim Nyog (IQ), Kev Tsim Nyog Ua Haujlwm (OQ), thiab Kev Tsim Nyog Kev Ua Haujlwm (PQ) paub meej tias kev txhaj tshuaj raug, kev ruaj ntseg tsis muaj menyuam (xws li xov xwm sau), thiab cov txheej txheem kev ruaj ntseg nyob rau hauv ob qho tib si zoo li qub thiab dynamic.
Cov txheej txheem tu vaj tu tsev niaj hnub ua kom muaj kev ua raws li niaj hnub no:
- Tsis tu ncua calibration ntawm dosing twj strokes.
- Nruam lub tais feeder saib xyuas kom ruaj khov khoom sib xws.
- Huv-hauv-Qhov Chaw (CIP) thiab Sterilization-hauv-Qhov chaw (SIP) ua tiav ntawm cov khoom tsim tawm.
- Kev kuaj xyuas lub sijhawm ntev ntawm cov ntsaws ruaj ruaj, gaskets, thiab cov neeg kho tshuab tuag- ceg.
Xaus
Kev ua haujlwm siab - ua haujlwm tau zoo ntawm aprefilled syringe lub tshuab nqus tsev filling tshuabnyob ntawm qhov chaw ruaj khov, tswj kev huv huv ib puag ncig. Thaum lub tshuab nqus tsev siab dhau los daws qhov teeb meem ntawm cov pa roj npuas thiab cov teeb meem oxidation thaum lub sij hawm siv tshuaj, cov chaw huv si muab qhov tseem ceeb tiv thaiv cov kab mob hauv huab cua thiab cov kab mob. Kev nqis peev hauv kev sib koom ua ke ntawm koj lub tshuab nqus tsev filling thiab ib puag ncig huv si yog lub hauv paus zoo tshaj plaws rau kev ua kom zoo, ua raws li aseptic kws tshuaj ntau lawm.
